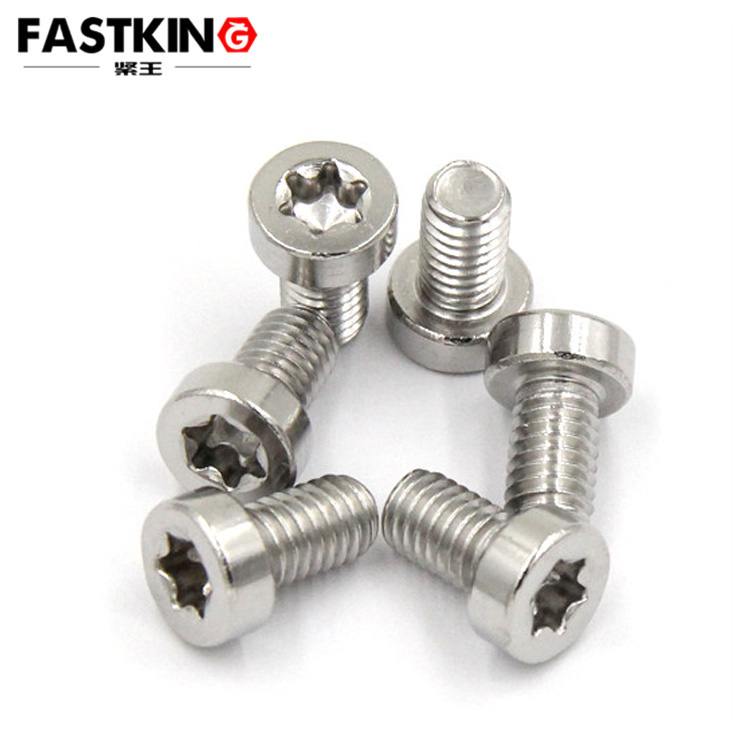

ISO14580 Torx Cheese Head Screws
- Product description：ISO14580 Torx Cheese Head Screws
GB2671.1 clearly defines the key parameters of thin pan-head torx Stainless steel screws, which directly affect fastening performance:
-
Head Dimensions: The "thinness" of the thin pan head is reflected in its head height, which is only 0.3-0.5 times the thread diameter (e.g., the head height of an M3 screw is approximately 1.2mm, and that of an M5 screw is about 2mm) — much lower than that of ordinary pan-head screws (whose head height is usually 0.8-1 times the thread diameter). This allows it to fit into installation spaces with limited depth. The head diameter is 1.5-1.8 times the thread diameter (e.g., the head diameter of an M4 screw is about 6.5mm), ensuring sufficient contact area with the connected component to avoid damage to the base material caused by excessive local pressure.
-
Torx Slot Specifications: The slot adopts an internationally universal torx design (common sizes: T5-T20, matching corresponding torx wrenches). The slot walls have a high fit with the wrench teeth, and the meshing depth is 30%-50% deeper than that of cross slots. This enables effective transmission of tightening torque and avoids loss of fastening torque caused by "stripping" (a common issue with cross slots).
-
Material Requirements: The standard recommends the use of 304 or 316 stainless steel. 304 stainless steel has a tensile strength ≥ 520MPa and a yield strength ≥ 205MPa; 316 stainless steel also has a tensile strength ≥ 520MPa and a yield strength ≥ 205MPa, along with excellent corrosion resistance. These properties provide a mechanical and environmental foundation for long-term fastening.
The two key design features of the thin pan-head torx structure directly improve fastening reliability:
-
Pressure Distribution Advantage of Thin Pan Head: Compared with countersunk screws (whose heads are fully embedded in the base material and prone to causing base material cracking due to stress concentration), the thin pan head adheres to the connected component through surface contact, providing a larger contact area (e.g., the contact area of an M6 thin pan head is approximately 28mm2, while that of a countersunk head of the same size is about 20mm2). This evenly distributes the tightening pressure across the base material surface, making it particularly suitable for soft base materials such as aluminum alloys and plastics. It avoids base material damage from excessive local pressure, ensures stable adhesion between the screw and the base material, and reduces the risk of loosening after fastening.
-
Torque Transmission Advantage of Torx Slot: The multi-tooth meshing structure of the torx slot (usually 6 or 12 teeth) evenly transmits the tightening torque from the wrench to the screw head. Its torque transmission efficiency is 40%-60% higher than that of cross slots (cross slots are prone to slot wall wear due to unidirectional force, leading to a torque loss rate of 20%-30%). Experimental data shows that under the same tightening torque (e.g., applying a 10N·m torque to an M5 screw), the actual fastening preload of a torx slot screw is 15%-20% higher than that of a cross slot screw. After 3-5 repeated disassembly cycles, the slot wear rate of the torx slot is only 1/3 that of the cross slot, and it still maintains stable torque transmission.
In the connection of precision components such as smartphone motherboards and laptop hard drives, the fastening effect of the GB2671.1 thin pan-head torx Stainless steel screw is reflected in "space adaptability + anti-loosening stability":
-
Space Adaptability: The installation gap between the motherboard and the housing is usually only 1-2mm. The thin pan head (e.g., the head height of an M2.5 screw is 1mm) can be fully embedded in the gap, avoiding component interference caused by a protruding head. The torx slot design is compatible with electric torx wrenches for automated assembly, enabling precise torque control (e.g., the tightening torque of an M2 screw is controlled at 0.8-1.2N·m). This ensures consistent preload across all screws (deviation ≤ 5%) and prevents motherboard deformation due to uneven torque.
-
Anti-Loosening Stability: The elastic modulus of 304 stainless steel has a high matching degree with the motherboard base material (aluminum alloy), resulting in minimal differences in thermal expansion and contraction caused by temperature changes (e.g., the motherboard temperature rises to 40-50℃ during smartphone charging). This reduces loosening caused by thermal stress. The anti-stripping property of the torx slot ensures that the screw can be removed without slot damage during subsequent maintenance, guaranteeing the reliability of secondary fastening.
In the connection of surgical instruments (e.g., dental handpieces) and diagnostic equipment (e.g., blood glucose meters), the fastening effect of this screw focuses on "corrosion resistance + no contaminant shedding":
-
Corrosion-Resistant Fastening: Medical devices often come into contact with corrosive media such as normal saline and disinfectants. The GB2671.1-compliant thin pan-head torx screw made of 316 stainless steel has a neutral salt spray resistance of ≥ 1000 hours, maintaining no rust in corrosive environments for 2-3 years. This avoids fastening force attenuation caused by screw rust (rust increases the thread fit gap, leading to a 30%-50% drop in preload).
-
Clean Fastening: The smooth surface of the thin pan head has no grooves (unlike screws with spring washers), making it less likely to retain dust or disinfectants and meeting the cleanliness requirements of medical devices. The closed structure of the torx slot prevents bacterial growth caused by dirt accumulation on the screw head. Additionally, no metal shavings are generated during fastening (a common issue with ordinary screws due to slot wear), ensuring the safe use of medical devices.
In the connection of smart door lock motors and robot vacuum chassis, this screw needs to resist high-frequency vibrations (e.g., the vibration frequency of a robot vacuum during operation is 50-200Hz). Its fastening effect is achieved through "structural anti-loosening + material toughness":
-
Structural Anti-Loosening: The high meshing degree between the torx slot and the wrench reduces torque loss caused by vibration. The tight adhesion between the thin pan head and the connected component, combined with the self-locking property of fine threads (e.g., M4×0.5, with a small pitch and lead angle resulting in a high self-locking coefficient), effectively resists vibration-induced loosening. Experiments show that in a 200Hz vibration environment, the preload attenuation rate of this screw is only 8%-10% after 100,000 vibration cycles — far lower than that of cross slot screws (25%-30%).
-
Material Toughness: 304 stainless steel has an elongation rate of ≥ 40% and excellent toughness. It can absorb energy through slight elastic deformation during vibration, avoiding fastening failure due to brittle fracture of the screw (ordinary carbon steel screws are prone to thread fracture under high-frequency vibration).
-
Material Selection: Choose 316 stainless steel for humid or corrosive environments (e.g., bathroom smart mirrors); select 304 stainless steel for dry, normal-temperature environments (e.g., living room smart speakers).
-
Thread Specification: Prioritize fine threads (e.g., M3×0.35) for vibrating scenarios to improve self-locking performance; opt for coarse threads (e.g., M4×0.7) for high-load scenarios (e.g., smart door lock bolt connections) to enhance load-bearing capacity.
-
Torque Matching: Determine the tightening torque based on the screw specification (e.g., the recommended torque for an M3 screw is 1.5-2N·m, and that for an M5 screw is 3-5N·m). Use a torque wrench for control to avoid insufficient fastening due to low torque or screw fracture/base material damage due to excessive torque.
-
Surface Treatment: Passivate 304 Stainless steel screws (forming a chromium oxide film on the surface) to increase surface hardness (Hv ≥ 200) and reduce slot wear during installation.
-
Base Material Preparation: When installing on soft base materials (e.g., plastic), pre-drill a guide hole (with a diameter 0.1-0.2mm larger than the minor thread diameter) to prevent base material cracking during screw insertion and ensure full thread meshing.
-
Anti-Loosening Assistance: For extreme vibration scenarios (e.g., industrial robot joints), apply anaerobic adhesive (e.g., Loctite 243) between the screw and the base material. The adhesive forms a thread lock after curing, further improving the anti-loosening effect (reducing the preload attenuation rate to below 3%).
